Here are the latest pictures.

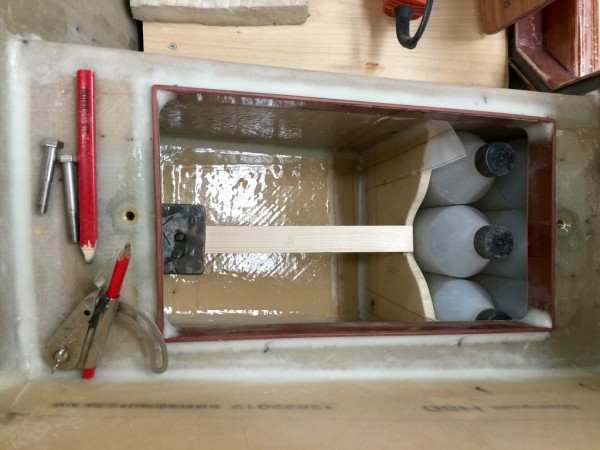

Below is the lunchbox or foodbox with food for about a week. The picture shows the six one-liter bottles. Seven would have been better, but such was unfortunatly not the geometry. Later musli and sardines will be added.
Close upp of the bottles that got there own compartment as not to rattle around. Its a good fit. The peelply has now been peeled and the stick that holds the wall in place taken away.
In the front of the boat the small deckhouse is now laminated into place and a towing bollard and four strong points are installed.
Close up.
The strongpoints are boulted by 4 M6 boults good enough to lift the weight of several Ex Lex boats.
Inside are 3X4 cm backing washers.
The towing bollard is fastened by 5 M6 boults and 4 4.8 mm seelf tapping screws
There are also several extra laminations inside and outside to reinforce.
To be continued…
Regards Yrvind.
