Exlex has started to live a life of her own. Now she wants plumbing. That was not planned, but she has reason, water handling will be much easier. With plumbing I can be busy doing other things while the rainwater fills up my jerry cans.
The forward rain catcher in a bit awkvard position.
Aft rain catcher
To get the water into the jerrycans I use hoses. There are two through deck fitting one forward and one back leading into the aft and forward compartments, from there, fittings connects through the waterproof bulkheads to the jerrycans in the holy sleeping room, holy in the sense that there is no direct holes to the outside.
The jerrycans have a very tight fit and are very secured in place. It would also be awkward to handle the 20 liter containers in the small cabin the solution is to use air pressure to transfer via hoses the water to one liter bottles.
Pressurising the jerry can with the help of my healthy lungs. The compressed air transfers the water to the one-liter bottle from wich its handy to drink.
The picture is from September 19 2015, the idea older. Now I have this idea to use this techniche on Next Design to transfer water to the windward side. This technique is not suitable for a big boat but for my boats I think it is appropriate. Back to the present, here are some details on Exlex plumbing.

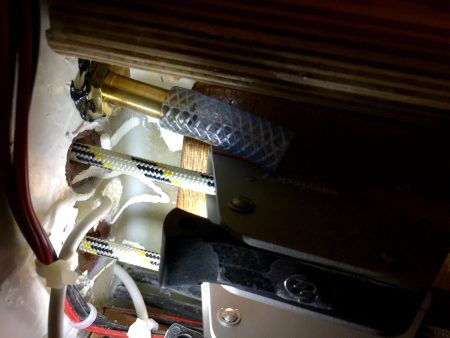

This picture is where the water from the aft rain catcher enters the sleeping room, just below the deck. The two ropes are the steering ropes for the port rudder. The thing at the bottom right corner is the two jammers that locks the rudder in the desired position.

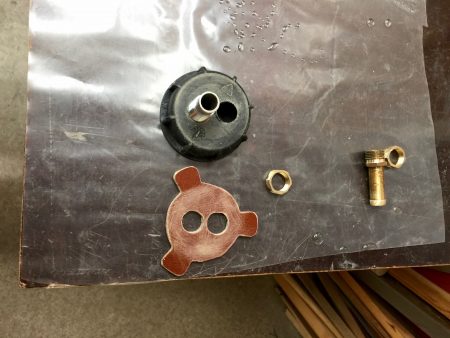

The same fitting from the eating room. The two steering ropes and two antenna cables one for the AIS one for the GPS can be seen. Its not waterproof, but its just under the deck and very off center. I do not think its very likely that water will enter my sleeping room here.Here I am modifying the lid of the jerry cans for the water hoses. The brown Tufnol piece is added to get a better grip to get the lid well screwed on.
Screwing the pieces together using bedding compound between the Tufnol and the lid
The two lids with the hoses that goes into the jerry cans. To the very right of the picture can be seen that on the end of the hose a nipple has been added as a sinker.Here is a close up
